Overview

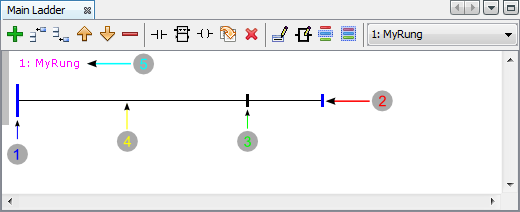

The Ladder program is edited using a graphical editor that organizes the program into rungs. Each rung corresponds to an interlocking that relates input elements to output elements. This editor is shown in the following figure.

Main elements of a rung

  1. Left bus
  2. Right bus
  3. Output bus
  4. Connections between elements
  5. Rung title and comment

NOTE: Outputs will always be connected to the right of the output bus.

For more details on Ladder programming, click here.

Operations available in the Ladder Editor toolbar

  • Add new rung to the end
  • Add new rung above
  • Add new rung below
  • Move rung above
  • Move rung below
  • Remove the selected rung
  • Insert a contact in the rung
  • Insert a function block in the rung
  • Insert an output coil in the rung
  • Swap Ladder Element
  • Delete a rung element
  • Edit rung title
  • Edit arguments
  • Select group of elements
  • Select all elements
  • Select the rung for editing
