Work Area
Whenever a Ladder file is opened via a shortcut in the project tree, the Ladder Editor will be displayed.

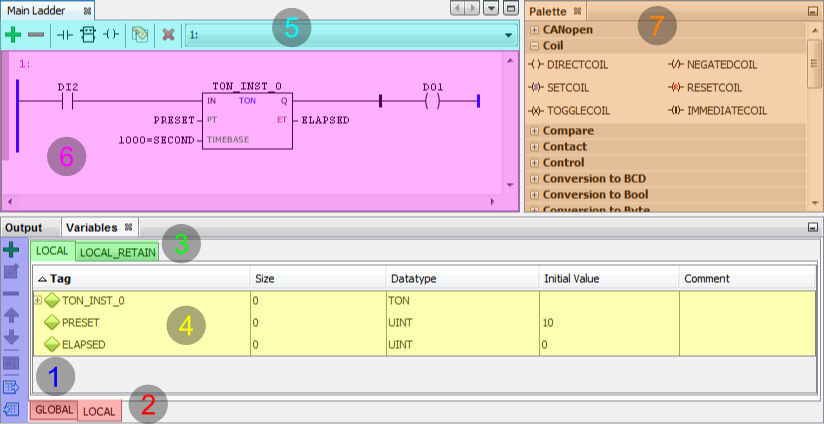

The Ladder Editor has the following components:
- Variable Editing Toolbar
- Variable Scope
- Variable Group
- Variable List/Editor
- Program Editing Toolbar
- Ladder Editor
- Ladder Component Palette
NOTE: If an item is not visible, activate it from the Window menu.
