New Feature - Offline Equipment
In the following example, we'll create a new resource with the CFW300. The windows may look different if you configure other devices.
CFW300
- "New Resource" Button/Menu Item
On the File menu, click New Resource.
You can also use the keyboard shortcut (Ctrl+Shift+R) or the New Resource button on the Toolbar:

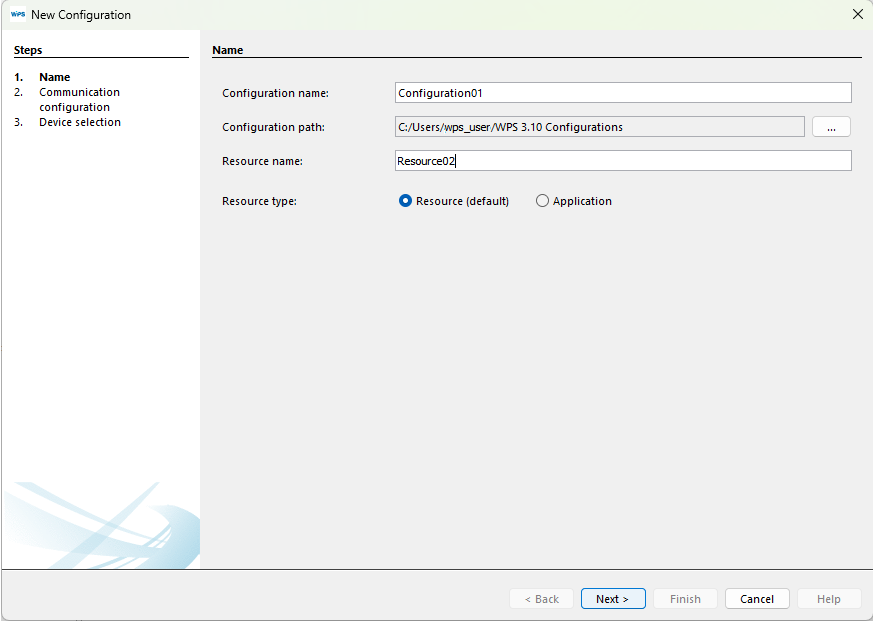

2) "New Configuration" Window
A window will appear for entering the name of the configuration and the first resource to be created. Enter the names in the respective fields and click Next.

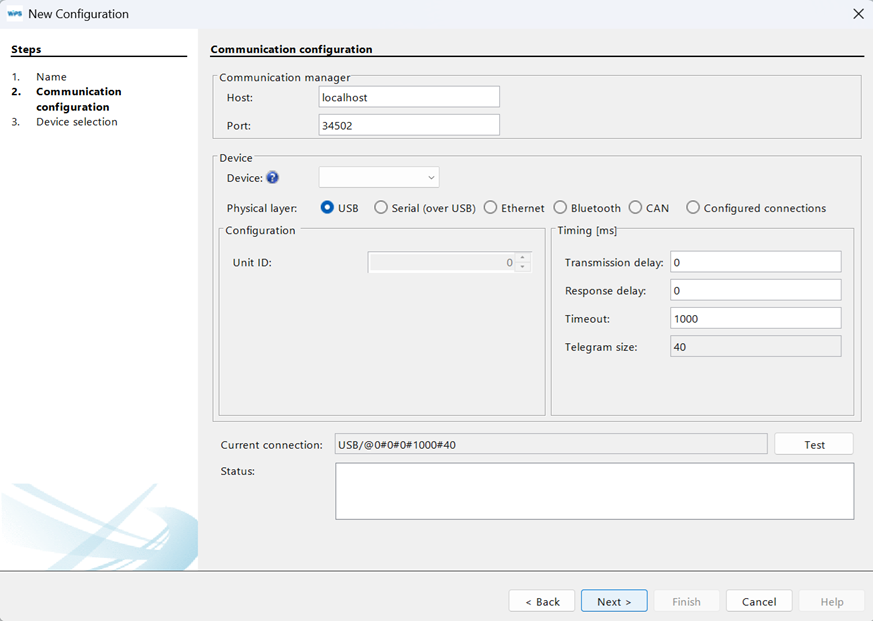

3) Communication Configuration
The next window sets the communication options for the device.

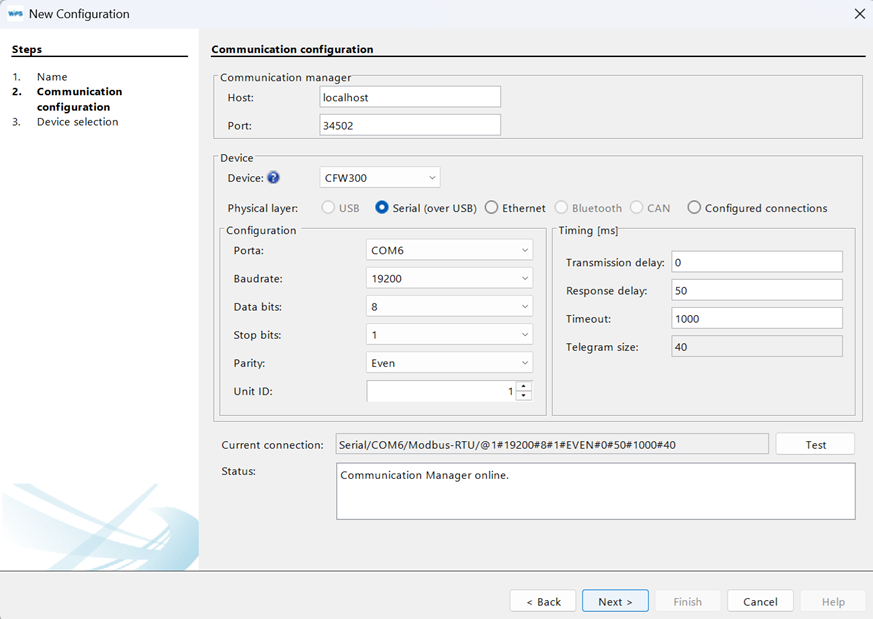

4) Selecting Communication Options
Choose the correct communication options. If you select a device, the device's default communication configuration will be loaded in the window. Verify that the configuration in the window matches the device's configuration; if not, update it as needed.
Note: In this example, the CFW300-CUSB accessory is being used, which appears as a USB serial port (virtual COM port) in Windows.
Note: When the cable is connected to the computer/device, Windows Device Manager displays the name of the created USB serial port.
Then click Next.

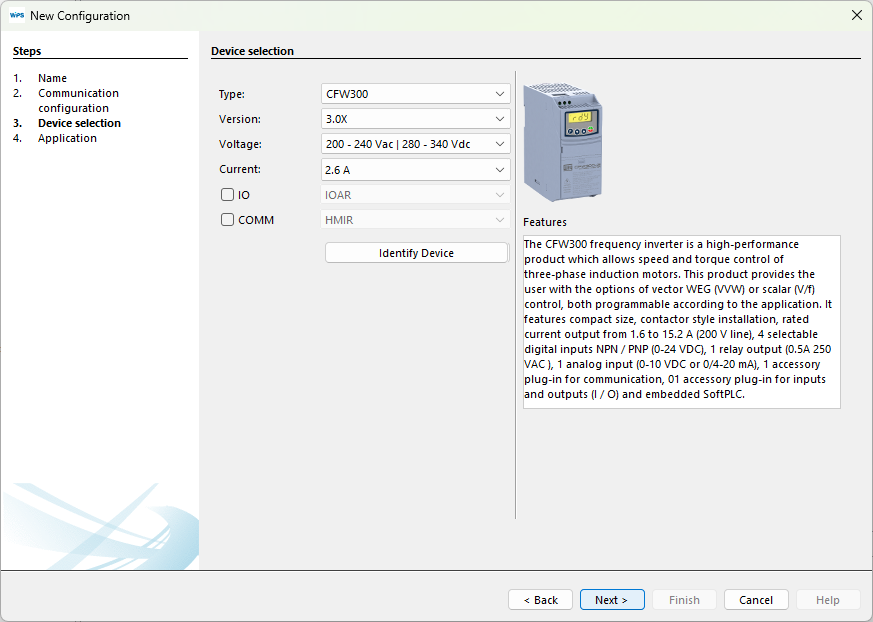

5) Device Selection
The window displays the device connected to the created resource. To proceed to the next step, click Next.

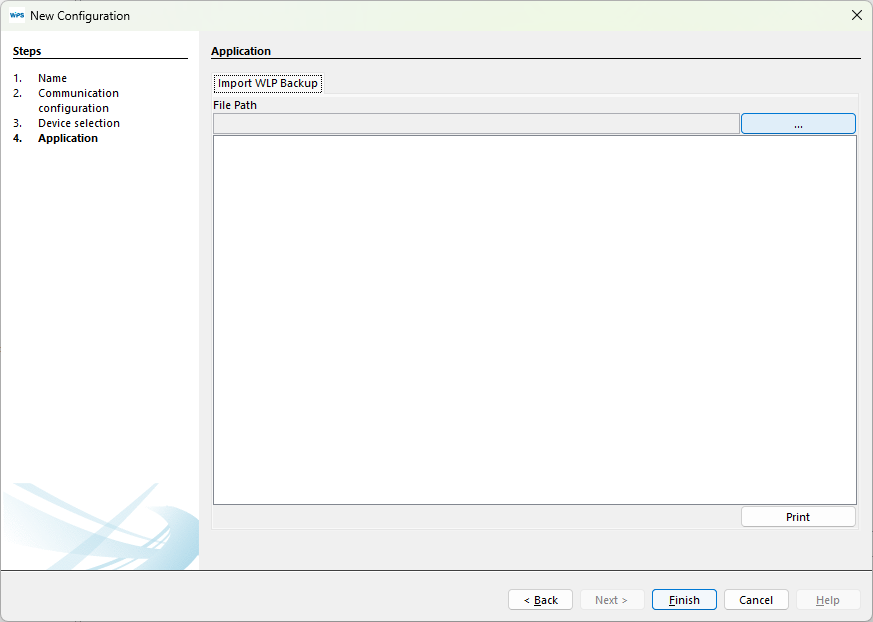

6) Import from WLP
A new window allows you to import a CFW100 Ladder project developed in WLP (WEG Ladder Programmer).
Click Finish to complete the wizard.

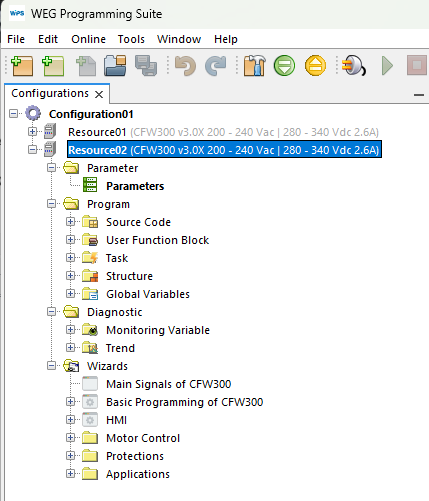

7) Configuration Tree
At the end of these steps, the configuration tree should look similar to the following image.

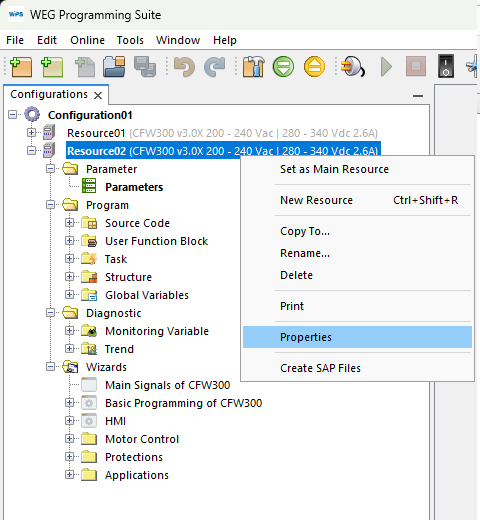

8) Resource Properties
Setup settings can be changed later in Resource Properties.
Note: Depending on the device, new windows may appear after this step, with initial configuration and guided startups.
