Variables in Structured Text

Structured Text variables are divided into two distinct types:

• 1) Local variables that are declared in the Structured Text Program:

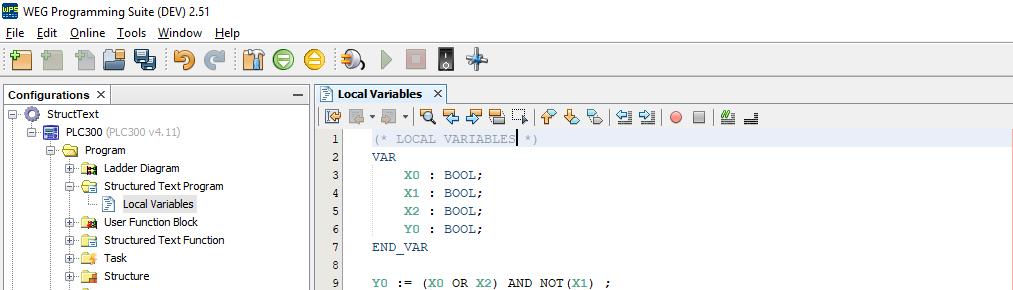

Figure 1: Local Variable Declaration

• 2) Global variables are declared in Structured Text Variables:

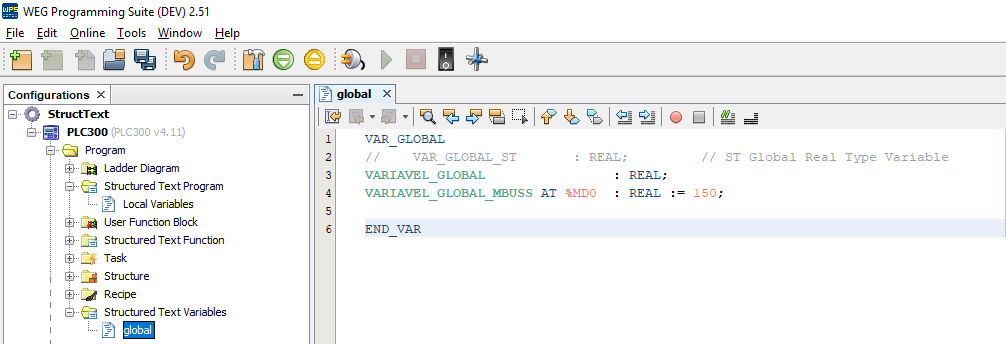

Figure 2: Global Variable Declaration

Note that Figure 2 has two variables declared differently:

• VARIAVEL_GLOBAL: non-addressed variable of type REAL.
• VARIAVEL_GLOBAL_MBUSS: variable with Modbus address 0 of type REAL and initial value 150.
