Quick Start > Pop-up Menu

The pop-up menu of the resource provides some functions described below.

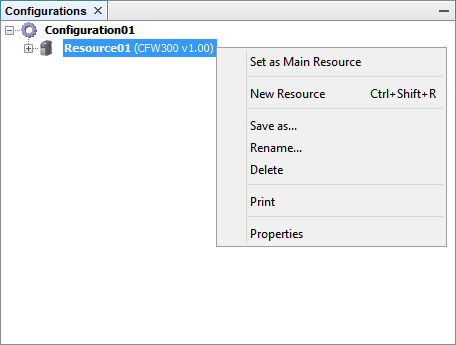

cfw300-popupmenu-resource

Click the link for quick access:

Define as Main Resource

- - -

- - -

Define as Main Resource

When a configuration has several resources, the resource in use must be defined as main resource.

In order to define a resource as main resource, click the Define as Main Resource item in the pop-up menu.

After clicking the menu item, the resource will show in bold.

NOTE!

Remember to always set a resource you wish to work as main resource, preventing download and editing errors.

New Resource

See the section Creating New Resource for details on creating a new resource.

Save As...

In order to duplicate a resource, click Save As in the pop-up menu.

save_as_01

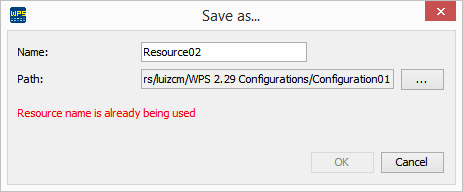

In the Name field, enter the new name of the resource and click OK.

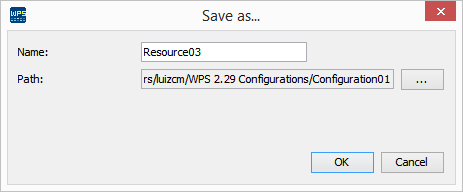

save_as_02

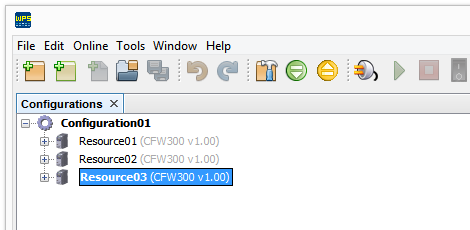

The new resource can be viewed in Configurations.

save_as_03

Rename

In order to rename a resource, click Rename in the pop-up menu.

Enter the new name.

•	Click OK to accept or

•	Click Cancel in order to cancel the operation.

Delete

In order to delete a resource, click Delete in the pop-up menu.

A message requests confirmation to delete the resource.

•	Click OK to delete or

•	Click Cancel in order to cancel the operation.

Select the option that you wish to print.

•	Click OK in order to print or

•	Click Cancel in order to cancel the operation.

Properties

In order to view/edit the resource properties, click the Properties menu item in the pop-up menu.

The properties window shows some categories:

•	Communication Configuration;

•	Program Copy;

•	Equipment;

•	Information;

•	Memory Areas.

1) Communication Configuration

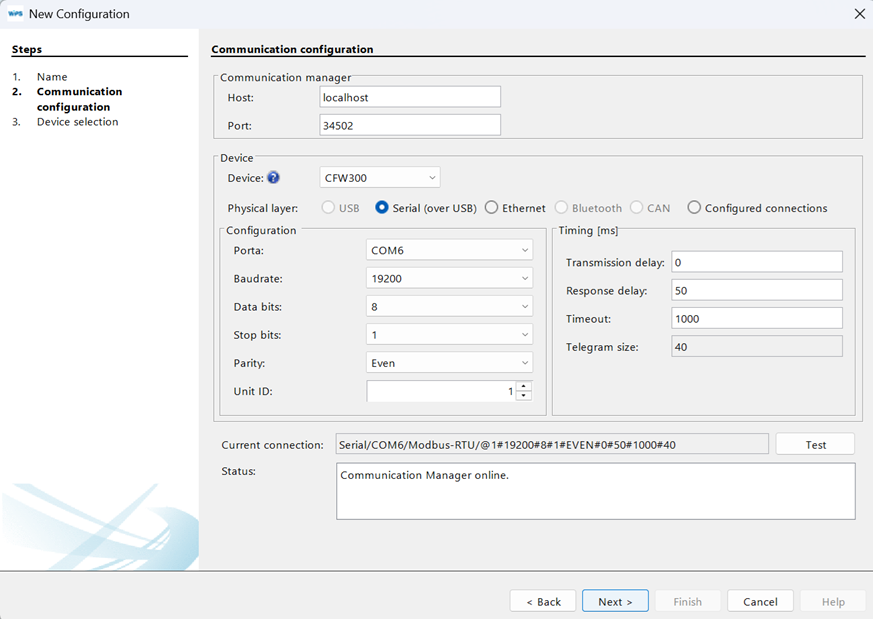

In Communication Configuration, you can change different communication variables:

•	Name of the host and port of the communication manager;

•	Device (Equipment);

•	Physical layer;

•	Port settings;

•

Times;

•	Communication test (current connection);

•	Communication status.

wpshelp_quick_start_popup_menu_resource_properties_communication_configuration

2) Program Copy

NOTE!

This option is available only for CFW300.

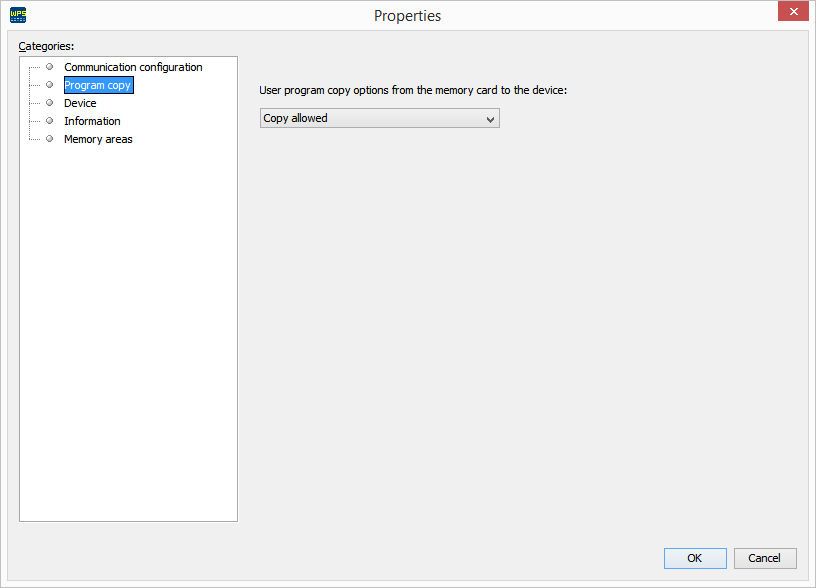

In Program Copy, a checkbox allows selecting the copy type of the user program from the memory card to the equipment:

•	Allow copying: allows the ladder program to be copied to a flash memory module (CFW300-MMF);

•	Allow only one copy: allows the ladder program to be copied to a flash memory module (CFW300-MMF), which allows loading it to another equipment; however, it does not allow copying from that equipment to another flash memory module, that is, it does not allow copy of the copy;

•	Do not allow copying: does not allow the ladder program to be copied to a flash memory module (CFW300-MMF);

wpshelp_quick_start_popup_menu_resource_properties_program_copy

3) Device

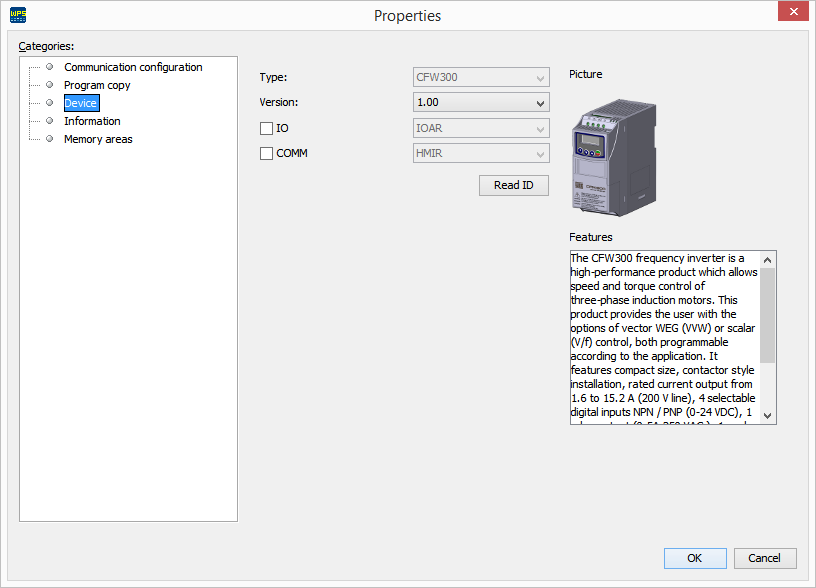

In Device, you can:

•	Change the firmware version;

•	Select/remove accessories;

•	Read the equipment identification, viewing the model and firmware version.

wpshelp_quick_start_popup_menu_resource_properties_device

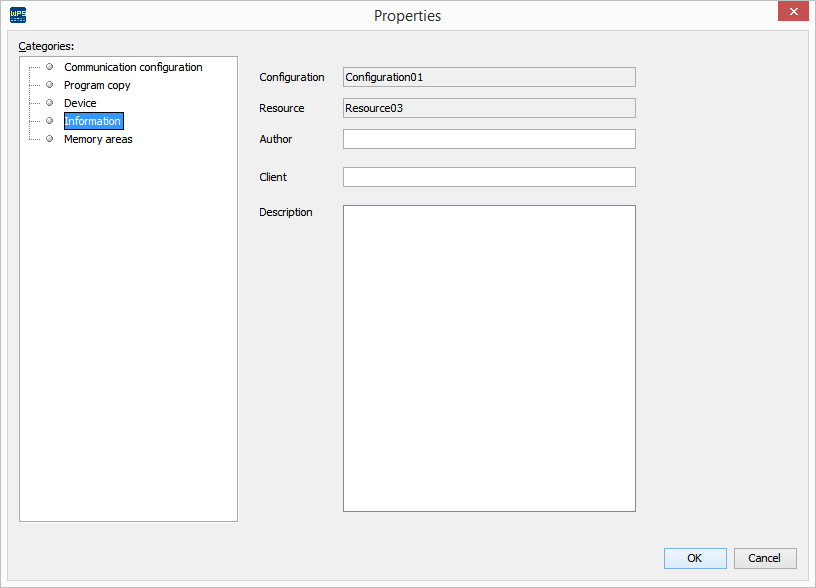

4) Information

In Information, you can view/change configuration data:

•

Author;

•

Client;

•	Description.

wpshelp_quick_start_popup_menu_resource_properties_information

5) Memory Areas

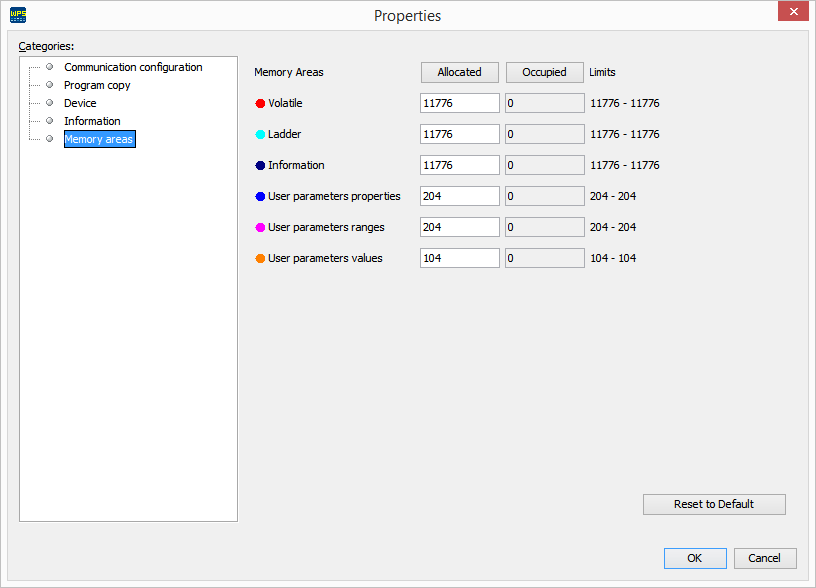

In Memory Areas, it is possible to change the amount of memory (in bytes) allocated to each resource section.

•	Allocated memory: the editable text boxes show information of allocated memory, enabling the user to change them;

•	Used memory: the non-editable text boxes show information on the memory currently used by the resource loaded on the equipment;

•	Limits: next to these boxes, it is displayed the range of acceptable values of allocated memory for each field.

One click on the Allocated button shows a chart of allocated memory.

One click on the Used button shows a chart of used memory.

wpshelp_quick_start_popup_menu_resource_properties_memory_areas
