Analog |

|
|
Analog |
|

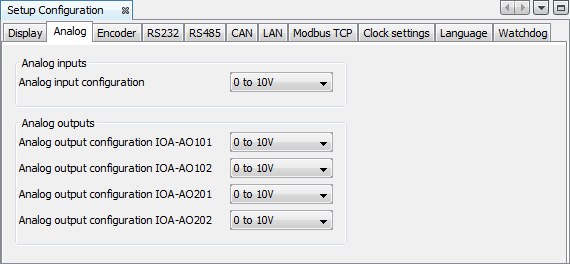

| • | Analog Inputs: It selects one of the three operation modes of the AI1 analog input of the PLC300: ‘Voltage 0 to 10 V’, ‘Current 0 to 20 mA’ or ‘Current 4 to 20 mA’. |
|
NOTE! In the option 4 to 20 mA, the value that the Ladder sees is a proportional, standardized value, that is, 4 to 20 mA - 0 to 32767. |
| • | Analog Outputs: It selects one of the four operation modes of the analog outputs (AOs) of the IOA accessories installed in the PLC300, seeing that the AOs 101 and 102 are the AOs 1 and 2 of the IOA card installed in the slot 1 of the PLC300, and the AOs 201 and 202 are the AOs 1 and 2 of the IOA card installed in slot 2. |
