Source Code Upload

Previous pageReturn to chapter overviewNext page

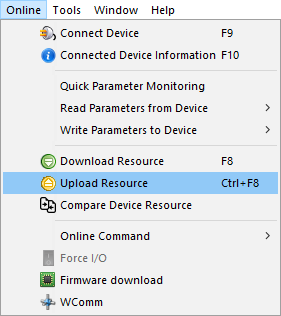

Make the upload the resource source code. To that end, it is necessary that the source code be previously recorded (during the downloaddownload) in device memory. To start the upload, uploadit is necessary to access the menu Communication > Upload resource.



wpsresourceprojectplc200extension_upload_fig1

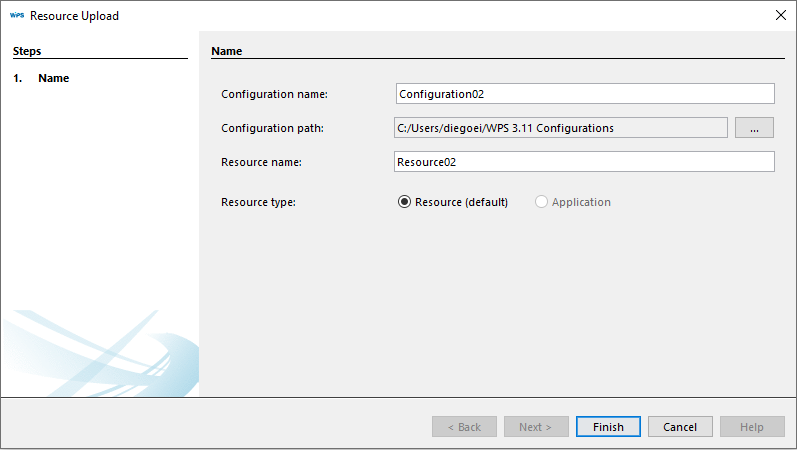

If the upload upload was performed successfully, the window to select the configuration name will open.



wpsresourceprojectplc200extension_upload_fig2



If a password to protect the source code was configured, it will be requested:



wpsresourceprojectplc200extension_upload_fig3
