Equipments (Devices) > SCA06 > Ladder > Contact

Leading edge transition contact.

Ladder Representation

Block Structure

Variable Type	Name	Data Type	Description
VAR_INPUT	I1	BOOL	Block control input
VAR	PTSCONTACT_INST_0	PTSCONTACT	Instance of access to block structure

Operation

At the instant the variable I1 transitions from FALSE to TRUE (leading edge or positive edge transition), B receives the value of A for a scan cycle.

At all other times, B receives the FALSE value.

NOTE!

Watch out for series and parallel associations of contacts. Refer to section Contact Logic for further information.

Diagram

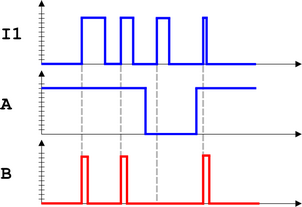

PTSCONTACT_diagram

Block Flowchart

PTSCONTACT_flowchart

Example in Ladder

The above example resets the digital output DO1 if the SHIFT key is pressed and a positive pulse on the digital input DI2 is given.

Example in ST

The example below displays the instructions for applying the example above in the ST language.

VAR

PTSCONTACT_INST_0 : FB_PTSCONTACT;

END_VAR

PTSCONTACT_INST_0(EN:=KEY_SHIFT, BIT:=DI2);

DO1 := FB_RESETCOIL(EN:=PTSCONTACT_INST_0.Q);
