Equipments (Devices) > SCA06 > Ladder > Coil

Logical block used for assigning values denied to output variables.

Ladder Representation

Block Structure

Variable Type	Name	Data Type	Description
VAR_OUTPUT	O1	BOOL	Block log output

Operation

The block transfers the denied value of A for the memory address corresponding to O1.

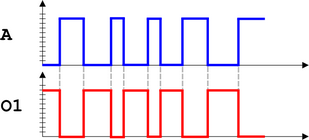

Diagram

INVERTEDCOIL_diagram

Block Flowchart

INVERTEDCOIL_flowchart

Example in Ladder

INVERTEDCOIL_example

The above example disables the digital output DO3 when some of the digital inputs DI1 and DI2 are with FALSE value. When both inputs are with a TRUE value, DO3 activates.
