Equipments (Devices) > SCA06 > Ladder > Coil

Logical block used for assigning values to standard digital outputs instantly.

Ladder Representation

Block Structure

Variable Type	Name	Data Type	Description
VAR_OUTPUT	O1	BOOL	Block log output

Operation

The block transfers the value of A for the digital output corresponding to O1.

Unlike the direct coil, this block does not wait until the end of the scan cycle so that the output value is updated; this is done at the same time the block is activated.

NOTE!

This block only works with standard digital outputs of the product.

Compatibility

Device	Version
PLC300	1.20 or higher
SCA06	2.00 or higher

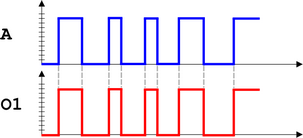

Diagram

IMMEDIATECOIL_diagram

Block Flowchart

IMMEDIATECOIL_flowchart

Example in Ladder

The above example immediately activates the internal buzzer when it detects that the power of the CANopen bus was stopped and remains on until the power is restored.

Example in ST

The example below displays the instructions for applying the example above in the ST language.

VAR

END_VAR

DO1 := FB_IMMEDIATECOIL(EN:=CAN_BUS_POWER);
