There are two types of memory area allocation: fixed and adjustable.

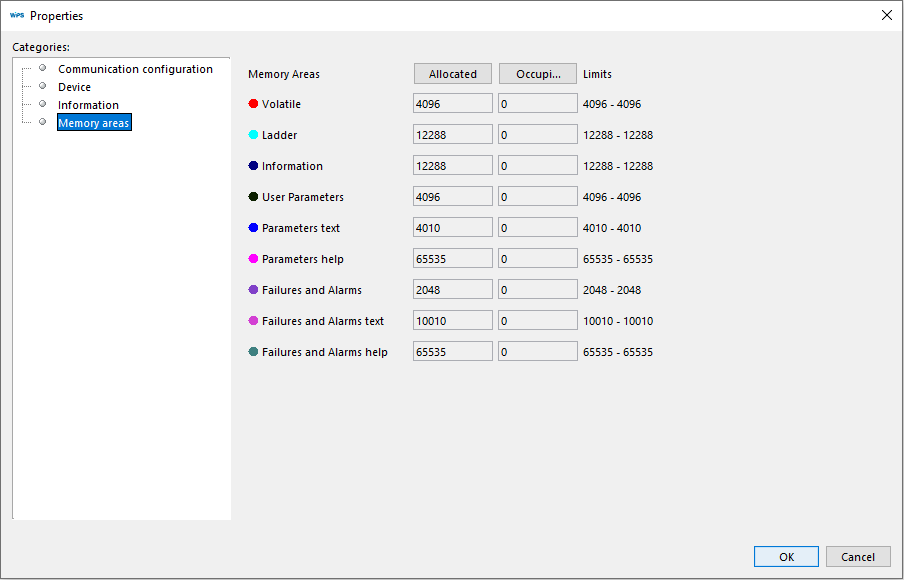

Figure 1 – Example with fixed “Allocated” area (SSW900)

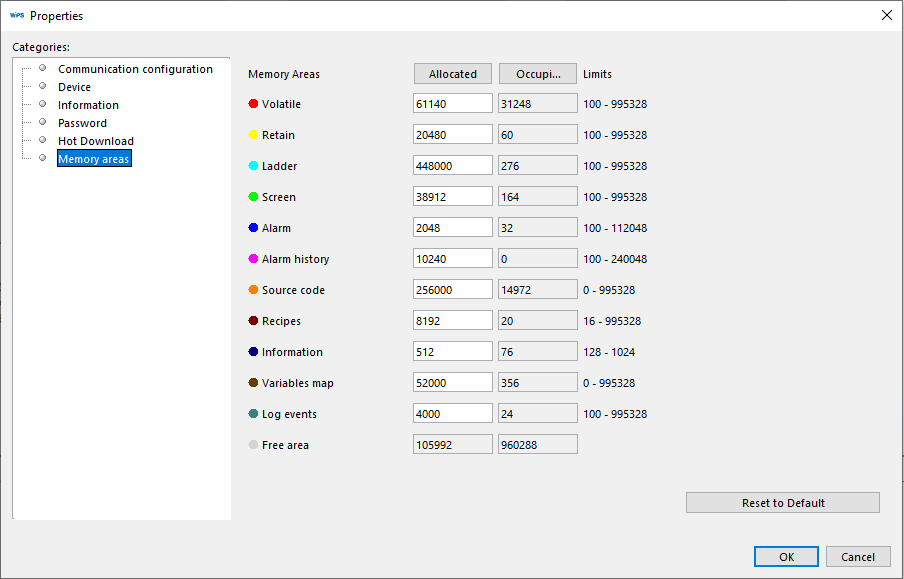

Figure 2 – Example with adjustable “Allocated” area (PLC300)
