Overview |

|
|
Overview |
|
The log function allows viewing the present alarms/faults and also the last alarms/faults in a more friendly and centralized way than on the equipment HMI, showing the data in tabular form.
All downloaded alarms/faults are saved in a file in order to keep a record for future reference; it is also possible to export the saved data as a csv file.

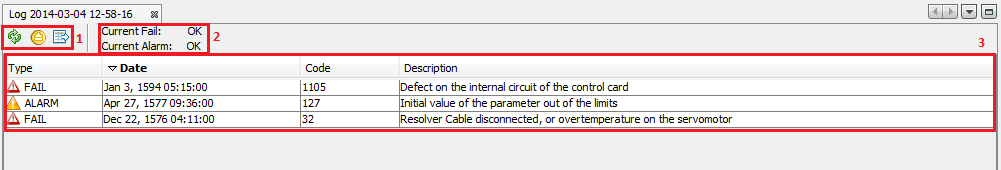

Below is an overview of the SCA06 log table.
| 1. | Actions. Below is the sequential description of each action: |
| 1.1. | On-Line Reading: This action constantly searches for new faults/alarms on the equipment; in case any occurs, the table is automatically updated. |
| 1.2. | Read Logs: This action reads all faults/alarms only once and updates the table. |
| 1.3. | Export: Export of data shown in the table as a CSV file. |
| 2. | Present Fault and Alarm. This field shows the present fault and alarm of the equipment if present; otherwise, the OK message is shown. |
| 3. | Fault and Alarm Table. This table shows all the faults and alarms, as well as the date when they occurred, code and description. |
