Import from WLP

 Previous pageReturn to chapter overviewNext page

The function import from WLP is utilized to import Ladder developed on WLP software to equipment (device).



The import from WLP can be executed during the resource creation.

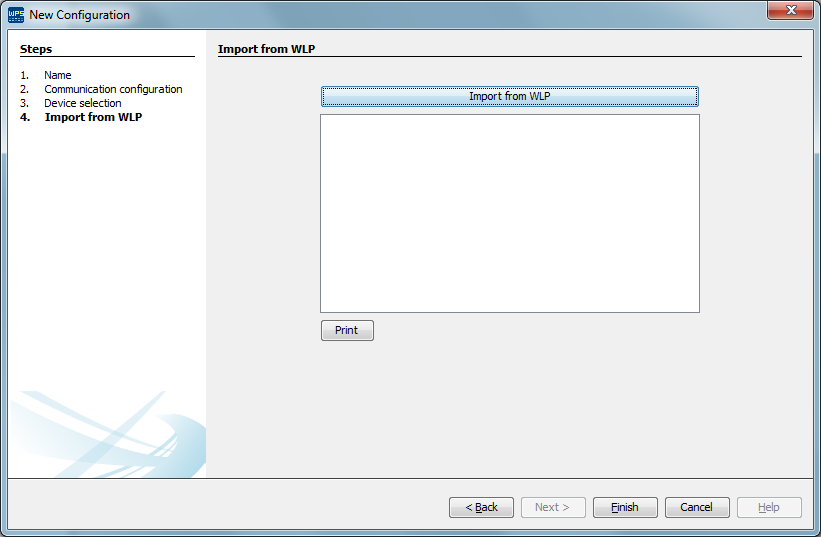

wpsresourceprojectplcsca06extension_importwlp_img001



1. To execute the import WLP function click the Import from WLP button and select the WLP project folder or the WLP BKP file.

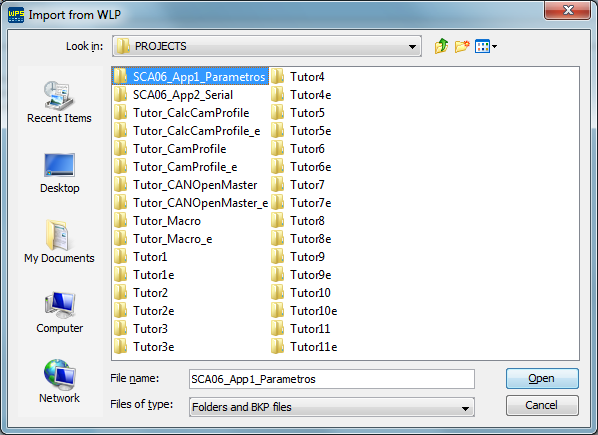

wpsresourceprojectplcsca06extension_importwlp_img002

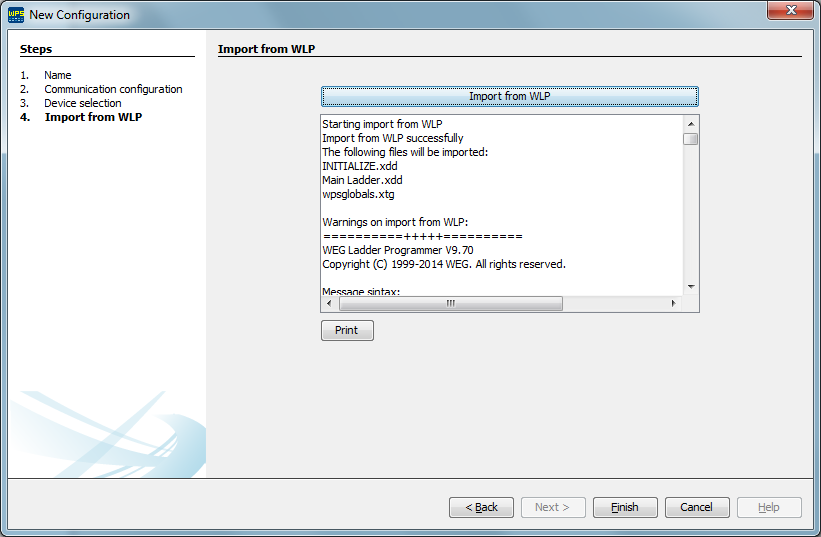

wpsresourceprojectplcsca06extension_importwlp_img003



2. After import from WLP completed successfully click the Finish button to copy the imported files to new resource.
