RS485

Previous pageReturn to chapter overviewNext page

xmlsetupconfigurationplc300_setupconfig_fig6

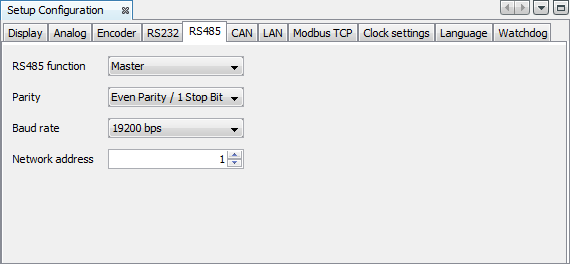

It is possible to configure the baud rate, the parity and the number of stop bits, the mode (master/slave) and the address of the PLC300 in a Modbus RTU network by means of the serial interface RS485 of the PLC300.
