Variables

 Previous pageReturn to chapter overviewNext page

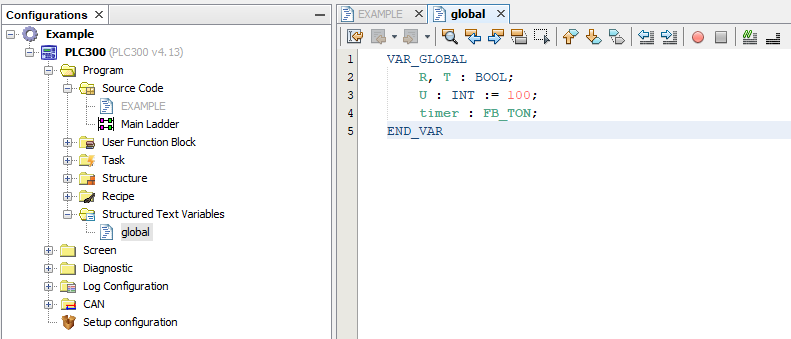

Global variables are declared in the global file, the declaration starting and ending with the keywords VAR_GLOBAL and END_VAR.



st_variables_2

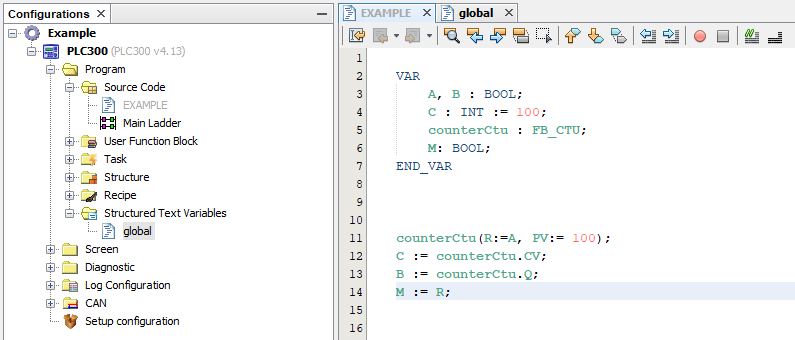

Local variables are declared in the same file where ST language expressions are implemented. The statement to be wrapped, started and ended with the keywords VAR and END_VAR.



st_variables_1



wpshelp_common_fig_note

NOTE!



There is no differentiation in the use of uppercase and lowercase letters to variables.
