Cabos USB |

|
|
Cabos USB |
|

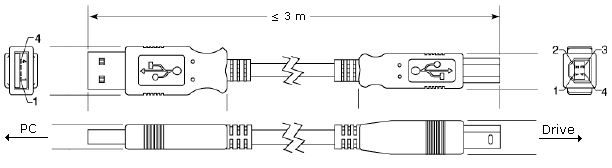

The figure below details the cable for the point-to-point USB connection.
Figure 1: USB Cables
The figure below shows the connectors.
Figure 2: USB Connectors
A = Type A Connector
B = Type B Connector
Maximum cable size: 3 meters.
|
NOTE! Always use a USB shielded interconnection cable, standard host/device shielded USB cable. Unshielded cables may generate communication errors. |
|
NOTE! The USB connection is galvanically isolated from the power grid and other elevated voltages internal to the drive. The USB connection, though, is not isolated from the protection earthing (PE). Use an isolated laptop to connect to the USB connector, or a desktop connected to the same protection earthing (PE) as the drive. |
Purchasing Suggestions
Manufacturer:
| • | Samtec, Inc: http://www.samtec.com |
If you wish to purchase a USB cable directly from Samtec, please see below:
Description |
Item |
|---|---|
High speed shielded USB cable Revision 2.0, 1 m, Samtec |
USBC-AM-MB-B-B-S-1 |
High speed shielded USB cable Revision 2.0, 2 m, Samtec |
USBC-AM-MB-B-B-S-2 |
High speed shielded USB cable Revision 2.0, 3 m, Samtec |
USBC-AM-MB-B-B-S-3 |
At the time this manual has been written, the specification could be found at
http://www.samtec.com/ftppub/cpdf/USBC-AM-BM-B-B-S-X-MKT.pdf
