Equipments (Devices) > CFW500 > Ladder > Communication Network > Modbus RTU > MB

Block that performs a writing of up to 128 binary data (via Write Single Coil or Write Multiple Coils) in a slave on the Modbus RTU network.

Ladder Representation

MB_WRITEBINARY_block

Block Structure

Variable Type	Name	Data Type	Description
VAR_INPUT	Execute	BOOL	Block enabling
	SlaveAddress	BYTE	Slave address
	Function#	BYTE	Writing function code
	InitialDataAddress	WORD	Initial bit address where the data will be written
	NumberOfData	BYTE	Number of bits to be written (1 to 128)
	Timeout#	WORD	Maximum waiting time for the slave response [ms]
	Offset#	BOOL	Offset Indication in InitialDataAddress, i.e., need to subtract 1 from this number
	Value	BOOL	Variable that stores the data to be written
VAR_OUTPUT	Done	BOOL	Output enabling
	Active	BOOL	Awaiting response flag
	Busy	BOOL	Flag indicating the RS485 interface is busy with another request
	Error	BOOL	Error in the execution flag
	ErrorID	BYTE	Identifier of the occurred error
VAR	MB_WRITEBINARY _INST_0	MB_WRITEBINARY	Instance of access to block structure

Operation

When this block detects a leading edge on Execute, it checks whether the Modbus RTU slave in specified address in SlaveAddress is free to send data (Busy variable at FALSE level). If so, it sends the writing request of a number of bits indicated by NumberOfData in InitialDataAddress address using chosen function in Function# and sets the Active output, resetting it when receiving the response from the slave. If the slave is not free, the block waits Busy go to FALSE level to resubmit the request.

NOTE!

If Execute goes to FALSE level and Busy is still at TRUE level, the request is canceled.

NOTE!

Value is an array of size equal to NumberOfData. It is important to check this compatibility not to generate errors in the block.

When Execute has FALSE value, Done remains FALSE. The Done output is only activated when the block finishes executing successfully, remaining at TRUE level until Execute receives FALSE.

If there is any error in the execution, the Error output is enabled and ErrorID displays an error code according to the table below.

Code	Description
0	Executed successfully
1	Invalid input data
2	Master not enabled
4	Timeout in slave response
5	Slave returned error

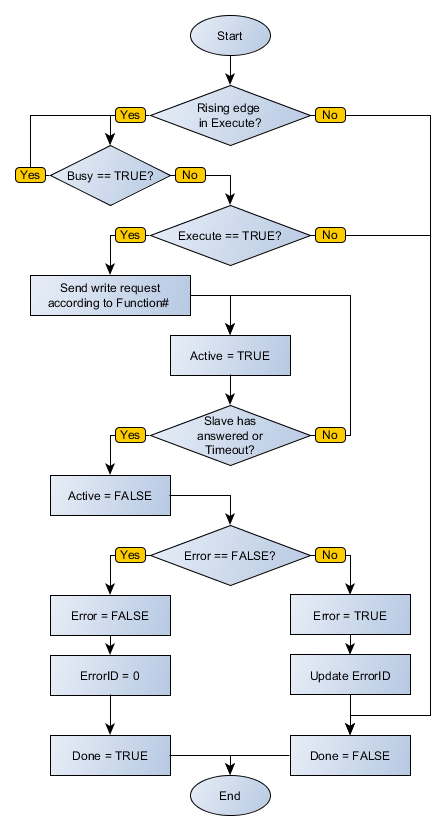

Block Flowchart

MB_WRITEBINARY_flowchart

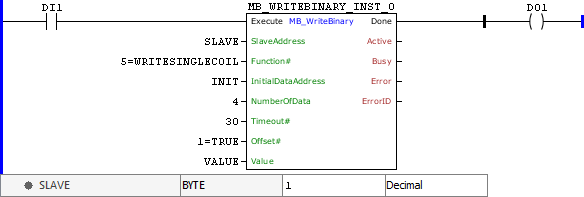

Example in Ladder

MB_WRITEBINARY_example01

The example above requests written data contained in VALUE, with size described by DATA_COUNT, at addresses positioned from INIT on Modbus RTU slave at address SLAVE using the function Write Single Coil. The block ends successfully, Done output is activated.

Example in ST

The example below displays the instructions for applying the example above in the ST language.

VAR

SLAVE : BYTE := 1;

INIT : WORD;

VALUE : ARRAY [0..4] OF BOOL;

MB_WRITEBINARY_INST_0 : FB_MB_WriteBinary;

END_VAR

MB_WRITEBINARY_INST_0.Execute := DI1;

MB_WRITEBINARY_INST_0(

SlaveAddress:=SLAVE,

Function:=5,

InitialDataAddress:=INIT,

NumberOfData:=4,

Timeout:=30,

Offset:=1,

Value:=VALUE);

DO1 := MB_WRITEBINARY_INST_0.Done;
